TPC-H ベンチマーク

TPC-H は、トランザクション処理性能評議会 (TPC) によって開発された意思決定支援ベンチマークです。これは、ビジネス指向のアドホッククエリと同時データ修正のスイートで構成されています。TPC-H は、実際の生産環境に基づいてモデルを構築し、販売システムのデータウェアハウスをシミュレートするために使用されます。このテストでは、データサイズが 1 GB から 3 TB の 8 つのテーブルを使用します。合計 22 のクエリがテストされ、主な性能指標は各クエリの応答時間であり、クエリが送信されてから結果が返されるまでの時間です。

1. テスト結論

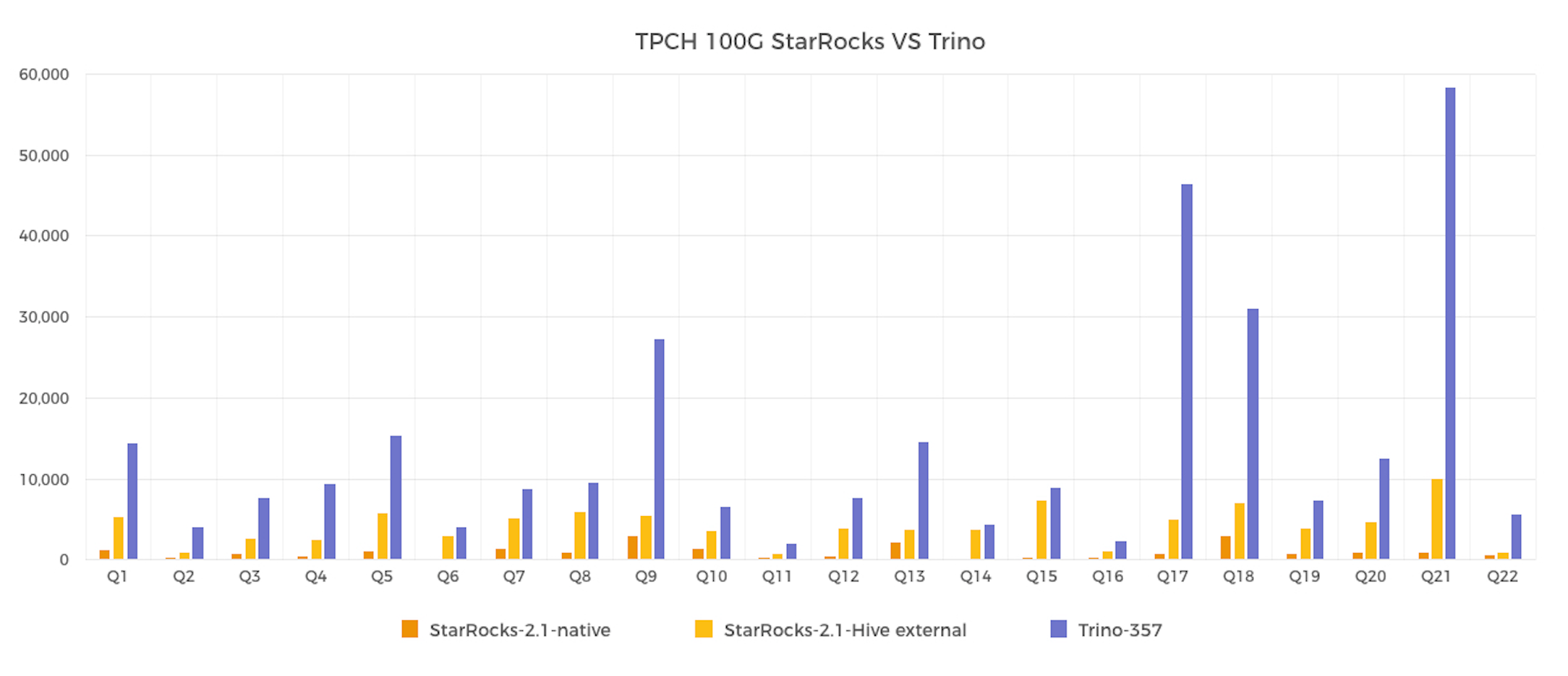

22 のクエリに対して TPC-H 100 GB データセットでテストを実施しました。以下の図はテスト結果を示しています。 クエリには StarRocks ネイティブストレージと StarRocks Hive 外部テーブルが使用されます。同じ ORC 形式で保存され、ZLIB 形式で圧縮されたデータのコピーを StarRocks Hive 外部テーブルと Trino を使用してクエリします。StarRocks ネイティブストレージのクエリ応答時間は 21 秒、StarRocks Hive 外部テーブルは 92 秒、Trino は 307 秒です。

2. テスト準備

2.1 ハードウェア環境

マシン	3 クラウドホスト
CPU	16 コア
メモリ	64 GB
ネットワーク帯域幅	5 Gbit/s
ディスク	システムディスク: ESSD 40 GB データディスク: ESSD 100 GB

2.2 ソフトウェア環境

• カーネルバージョン: Linux 3.10.0-1127.13.1.el7.x86_64
• OS バージョン: CentOS Linux リリース 7.8.2003
• ソフトウェアバージョン: StarRocks 2.1, Trino-357, Hive-3.1.2

StarRocks FE は、BEs と個別にデプロイすることも、ハイブリッドデプロイすることも可能で、テスト結果には影響しません。

3. テストデータと結果

3.1 テストデータ

テストでは TPC-H 100 GB データセットを使用します。

テーブル	レコード数	StarRocks での圧縮後のデータサイズ
customer	1500 万	2.4 GB
lineitem	6 億	75 GB
nation	25	2.2 KB
orders	1 億 5000 万	16 GB
part	2 億	2.4 GB
partsupp	8 億	11.6 GB
region	5	389 B
supplier	100 万	0.14 GB

3.2 テスト SQL

--Q1
select
  l_returnflag,
  l_linestatus,
  sum(l_quantity) as sum_qty,
  sum(l_extendedprice) as sum_base_price,
  sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
  sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
  avg(l_quantity) as avg_qty,
  avg(l_extendedprice) as avg_price,
  avg(l_discount) as avg_disc,
  count(*) as count_order
from lineitem
where  l_shipdate <= date '1998-12-01'
group by  l_returnflag,  l_linestatus
order by  l_returnflag,  l_linestatus;

--Q2
select  s_acctbal, s_name,  n_name,  p_partkey,  p_mfgr,  s_address,  s_phone,  s_comment
from  part,  partsupp,  supplier,  nation,  region
where
  p_partkey = ps_partkey
  and s_suppkey = ps_suppkey
  and p_size = 15
  and p_type like '%BRASS'
  and s_nationkey = n_nationkey
  and n_regionkey = r_regionkey
  and r_name = 'EUROPE'
  and ps_supplycost = (
    select  min(ps_supplycost)
    from  partsupp,  supplier,  nation,  region
    where
      p_partkey = ps_partkey
      and s_suppkey = ps_suppkey
      and s_nationkey = n_nationkey
      and n_regionkey = r_regionkey
      and r_name = 'EUROPE'
  )
order by  s_acctbal desc, n_name,  s_name,  p_partkey;

--Q3
select
  l_orderkey, sum(l_extendedprice * (1 - l_discount)) as revenue, o_orderdate, o_shippriority
from
  customer, orders, lineitem
where
  c_mktsegment = 'BUILDING'
  and c_custkey = o_custkey
  and l_orderkey = o_orderkey
  and o_orderdate < date '1995-03-15'
  and l_shipdate > date '1995-03-15'
group by l_orderkey, o_orderdate, o_shippriority
order by revenue desc, o_orderdate;

--Q4
select  o_orderpriority,  count(*) as order_count
from  orders
where
  o_orderdate >= date '1993-07-01'
  and o_orderdate < date '1993-07-01' + interval '3' month
  and exists (
    select  * from  lineitem
    where  l_orderkey = o_orderkey and l_commitdate < l_receiptdate
  )
group by o_orderpriority
order by o_orderpriority;

--Q5
select n_name, sum(l_extendedprice * (1 - l_discount)) as revenue
from customer, orders, lineitem, supplier, nation, region
where
  c_custkey = o_custkey
  and l_orderkey = o_orderkey
  and l_suppkey = s_suppkey
  and c_nationkey = s_nationkey
  and s_nationkey = n_nationkey
  and n_regionkey = r_regionkey
  and r_name = 'ASIA'
  and o_orderdate >= date '1994-01-01'
  and o_orderdate < date '1994-01-01' + interval '1' year
group by n_name
order by revenue desc;

--Q6
select
  sum(l_extendedprice * l_discount) as revenue
from
  lineitem
where
  l_shipdate >= date '1994-01-01'
  and l_shipdate < date '1994-01-01' + interval '1' year
  and l_discount between .06 - 0.01 and .06 + 0.01
  and l_quantity < 24;

--Q7
select supp_nation, cust_nation, l_year, sum(volume) as revenue
from (
    select
      n1.n_name as supp_nation,
      n2.n_name as cust_nation,
      extract(year from l_shipdate) as l_year,
      l_extendedprice * (1 - l_discount) as volume
    from supplier, lineitem, orders, customer, nation n1, nation n2
    where
      s_suppkey = l_suppkey
      and o_orderkey = l_orderkey
      and c_custkey = o_custkey
      and s_nationkey = n1.n_nationkey
      and c_nationkey = n2.n_nationkey
      and (
        (n1.n_name = 'FRANCE' and n2.n_name = 'GERMANY')
        or (n1.n_name = 'GERMANY' and n2.n_name = 'FRANCE')
      )
      and l_shipdate between date '1995-01-01' and date '1996-12-31'
  ) as shipping
group by supp_nation, cust_nation, l_year
order by supp_nation, cust_nation, l_year;

--Q8
select
  o_year, sum(case when nation = 'BRAZIL' then volume else 0 end) / sum(volume) as mkt_share
from
  (
    select
      extract(year from o_orderdate) as o_year,
      l_extendedprice * (1 - l_discount) as volume,
      n2.n_name as nation
    from part, supplier, lineitem, orders, customer, nation n1, nation n2, region
    where
      p_partkey = l_partkey
      and s_suppkey = l_suppkey
      and l_orderkey = o_orderkey
      and o_custkey = c_custkey
      and c_nationkey = n1.n_nationkey
      and n1.n_regionkey = r_regionkey
      and r_name = 'AMERICA'
      and s_nationkey = n2.n_nationkey
      and o_orderdate between date '1995-01-01' and date '1996-12-31'
      and p_type = 'ECONOMY ANODIZED STEEL'
  ) as all_nations
group by o_year
order by o_year;

--Q9
select nation, o_year, sum(amount) as sum_profit
from
  (
    select
      n_name as nation,
      extract(year from o_orderdate) as o_year,
      l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
    from part, supplier, lineitem, partsupp, orders, nation
    where
      s_suppkey = l_suppkey
      and ps_suppkey = l_suppkey
      and ps_partkey = l_partkey
      and p_partkey = l_partkey
      and o_orderkey = l_orderkey
      and s_nationkey = n_nationkey
      and p_name like '%green%'
  ) as profit
group by nation, o_year
order by nation, o_year desc;

--Q10
select c_custkey, c_name, sum(l_extendedprice * (1 - l_discount)) as revenue, c_acctbal, n_name, c_address, c_phone, c_comment
    from customer, orders, lineitem, nation
    where
      c_custkey = o_custkey
      and l_orderkey = o_orderkey
      and o_orderdate >= date '1993-10-01'
      and o_orderdate < date '1993-12-01'
      and l_returnflag = 'R'
      and c_nationkey = n_nationkey
    group by c_custkey, c_name, c_acctbal, c_phone, n_name, c_address, c_comment
    order by revenue desc;

--Q11
select ps_partkey, sum(ps_supplycost * ps_availqty) as value
from partsupp, supplier, nation
where
  ps_suppkey = s_suppkey
  and s_nationkey = n_nationkey
  and n_name = 'GERMANY'
group by ps_partkey having
    sum(ps_supplycost * ps_availqty) > (
      select sum(ps_supplycost * ps_availqty) * 0.0001000000
      from partsupp, supplier, nation
      where
        ps_suppkey = s_suppkey
        and s_nationkey = n_nationkey
        and n_name = 'GERMANY'
    )
order by value desc;

--Q12
select
  l_shipmode,
  sum(case when o_orderpriority = '1-URGENT' or o_orderpriority = '2-HIGH' then 1 else 0 end) as high_line_count,
  sum(case when o_orderpriority <> '1-URGENT' and o_orderpriority <> '2-HIGH' then 1 else 0 end) as low_line_count
from orders, lineitem
where
  o_orderkey = l_orderkey
  and l_shipmode in ('MAIL', 'SHIP')
  and l_commitdate < l_receiptdate
  and l_shipdate < l_commitdate
  and l_receiptdate >= date '1994-01-01'
  and l_receiptdate < date '1994-01-01' + interval '1' year
group by l_shipmode
order by l_shipmode;

--Q13
select  c_count,  count(*) as custdist
from (select c_custkey,count(o_orderkey) as c_count
    from customer left outer join orders on c_custkey = o_custkey and o_comment not like '%special%requests%'
    group by  c_custkey
) as c_orders
group by  c_count
order by custdist desc, c_count desc;

--Q14
select
  100.00 * sum(case when p_type like 'PROMO%' then l_extendedprice * (1 - l_discount) else 0 end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
from lineitem, part
where
  l_partkey = p_partkey
  and l_shipdate >= date '1995-09-01'
  and l_shipdate < date '1995-09-01' + interval '1' month;

--Q15
select s_suppkey, s_name, s_address, s_phone, total_revenue
from supplier, revenue0
where
  s_suppkey = supplier_no
  and total_revenue = (
    select max(total_revenue) from revenue0
  )
order by s_suppkey;

--Q16
select p_brand, p_type, p_size, count(distinct ps_suppkey) as supplier_cnt
from partsupp, part
where
  p_partkey = ps_partkey
  and p_brand <> 'Brand#45'
  and p_type not like 'MEDIUM POLISHED%'
  and p_size in (49, 14, 23, 45, 19, 3, 36, 9)
  and ps_suppkey not in (
    select s_suppkey from supplier where s_comment like '%Customer%Complaints%'
  )
group by p_brand, p_type, p_size
order by supplier_cnt desc, p_brand, p_type, p_size;

--Q17
select sum(l_extendedprice) / 7.0 as avg_yearly
from lineitem, part
where
  p_partkey = l_partkey
  and p_brand = 'Brand#23'
  and p_container = 'MED BOX'
  and l_quantity < (
    select 0.2 * avg(l_quantity) from lineitem where l_partkey = p_partkey
  );

--Q18
select c_name, c_custkey, o_orderkey, o_orderdate, o_totalprice, sum(l_quantity)
from customer, orders, lineitem
where
  o_orderkey in (
    select l_orderkey from lineitem
    group by l_orderkey having
        sum(l_quantity) > 300
  )
  and c_custkey = o_custkey
  and o_orderkey = l_orderkey
group by c_name, c_custkey, o_orderkey, o_orderdate, o_totalprice
order by o_totalprice desc, o_orderdate;

--Q19
select sum(l_extendedprice* (1 - l_discount)) as revenue
from lineitem, part
where
  (
    p_partkey = l_partkey
    and p_brand = 'Brand#12'
    and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
    and l_quantity >= 1 and l_quantity <= 1 + 10
    and p_size between 1 and 5
    and l_shipmode in ('AIR', 'AIR REG')
    and l_shipinstruct = 'DELIVER IN PERSON'
  )
  or
  (
    p_partkey = l_partkey
    and p_brand = 'Brand#23'
    and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
    and l_quantity >= 10 and l_quantity <= 10 + 10
    and p_size between 1 and 10
    and l_shipmode in ('AIR', 'AIR REG')
    and l_shipinstruct = 'DELIVER IN PERSON'
  )
  or
  (
    p_partkey = l_partkey
    and p_brand = 'Brand#34'
    and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
    and l_quantity >= 20 and l_quantity <= 20 + 10
    and p_size between 1 and 15
    and l_shipmode in ('AIR', 'AIR REG')
    and l_shipinstruct = 'DELIVER IN PERSON'
  );

--Q20
select s_name, s_address
from supplier, nation
where
  s_suppkey in (
    select ps_suppkey
    from partsupp
    where
      ps_partkey in (
        select p_partkey from part
        where p_name like 'forest%'
      )
      and ps_availqty > (
        select 0.5 * sum(l_quantity)
        from lineitem
        where
          l_partkey = ps_partkey
          and l_suppkey = ps_suppkey
          and l_shipdate >= date '1994-01-01'
          and l_shipdate < date '1994-01-01' + interval '1' year
      )
  )
  and s_nationkey = n_nationkey
  and n_name = 'CANADA'
order by s_name;

--Q21
select s_name, count(*) as numwait
from  supplier,  lineitem l1,  orders,  nation
where
  s_suppkey = l1.l_suppkey
  and o_orderkey = l1.l_orderkey
  and o_orderstatus = 'F'
  and l1.l_receiptdate > l1.l_commitdate
  and exists (
    select * from  lineitem l2
    where
      l2.l_orderkey = l1.l_orderkey
      and l2.l_suppkey <> l1.l_suppkey
  )
  and not exists (
    select * from  lineitem l3
    where
      l3.l_orderkey = l1.l_orderkey
      and l3.l_suppkey <> l1.l_suppkey
      and l3.l_receiptdate > l3.l_commitdate
  )
  and s_nationkey = n_nationkey
  and n_name = 'SAUDI ARABIA'
group by s_name
order by  numwait desc, s_name;

--Q22
select
  cntrycode,
  count(*) as numcust,
  sum(c_acctbal) as totacctbal
from
  (
    select
      substr(c_phone, 1, 2) as cntrycode,
      c_acctbal
    from
      customer
    where
      substr(c_phone, 1, 2) in
        ('13', '31', '23', '29', '30', '18', '17')
      and c_acctbal > (
        select
          avg(c_acctbal)
        from
          customer
        where
          c_acctbal > 0.00
          and substr(c_phone, 1, 2) in
            ('13', '31', '23', '29', '30', '18', '17')
      )
      and not exists (
        select
          *
        from
          orders
        where
          o_custkey = c_custkey
      )
  ) as custsale
group by
  cntrycode
order by
  cntrycode;

3.3 テスト結果

クエリ	StarRocks ネイティブ (ms)	StarRocks-Hive 外部 (ms)	Trino (ms)
q1	1291	5349	14350
q2	257	940	4075
q3	690	2585	7615
q4	529	2514	9385
q5	1142	5844	15350
q6	115	2936	4045
q7	1435	5128	8760
q8	855	5989	9535
q9	3028	5507	27310
q10	1381	3654	6560
q11	265	691	2090
q12	387	3827	7635
q13	2165	3733	14530
q14	184	3824	4355
q15	354	7321	8975
q16	240	1029	2265
q17	753	5011	46405
q18	2909	7032	30975
q19	702	3905	7315
q20	963	4623	12500
q21	870	10016	58340
q22	545	991	5605
合計	21060	92449	307975

4. テスト手順

4.1 StarRocks 内部テーブル

4.1.1 データ生成

1. tpch-poc ツールキットをダウンロードしてコンパイルします。

   wget https://starrocks-public.oss-cn-zhangjiakou.aliyuncs.com/tpch-poc-0.1.2.zip
   unzip tpch-poc-0.1.2.zip
   cd tpch-poc-0.1.2
   cd benchmark

   関連ツールは bin ディレクトリに保存されており、ホームディレクトリで操作を開始できます。

2. データを生成します。

   # `data_100` ディレクトリに 100 GB のデータを生成します。
   ./bin/gen_data/gen-tpch.sh 100 data_100

4.1.2 テーブルスキーマの作成

1. 設定ファイル conf/starrocks.conf を修正し、クラスタのアドレスを指定します。

   # StarRocks 設定
   mysql_host: 192.168.1.1
   mysql_port: 9030
   mysql_user: root
   mysql_password:
   database: tpch

   # クラスタポート
   http_port: 8030
   be_heartbeat_port: 9050
   broker_port: 8000

   # parallel_fragment_exec_instance_num は並行性を指定します。
   # 推奨される並行性はクラスタの CPU コア数の半分です。以下の例では 8 を使用しています。
   parallel_num: 8

2. 次のスクリプトを実行してテーブルを作成します。

   # 100GB データ用のテーブルを作成します
   ./bin/create_db_table.sh ddl_100

   テーブルが作成され、デフォルトのバケット数が指定されています。以前のテーブルを削除し、クラスタサイズとノード構成に基づいてバケット数を再計画することができます。これにより、より良いテスト結果が得られます。

   # customer という名前のテーブルを作成します。
   drop table if exists customer;
   CREATE TABLE customer (
       c_custkey     int NOT NULL,
       c_name        VARCHAR(25) NOT NULL,
       c_address     VARCHAR(40) NOT NULL,
       c_nationkey   int NOT NULL,
       c_phone       VARCHAR(15) NOT NULL,
       c_acctbal     decimal(15, 2)   NOT NULL,
       c_mktsegment  VARCHAR(10) NOT NULL,
       c_comment     VARCHAR(117) NOT NULL
   )ENGINE=OLAP
   DUPLICATE KEY(`c_custkey`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`c_custkey`) BUCKETS 24
   PROPERTIES (
       "replication_num" = "1",
       "in_memory" = "false",
       "storage_format" = "DEFAULT"
   );
   # lineitem という名前のテーブルを作成します。
   drop table if exists lineitem;
   CREATE TABLE lineitem (
       l_shipdate    DATE NOT NULL,
       l_orderkey    int NOT NULL,
       l_linenumber  int not null,
       l_partkey     int NOT NULL,
       l_suppkey     int not null,
       l_quantity    decimal(15, 2) NOT NULL,
       l_extendedprice  decimal(15, 2) NOT NULL,
       l_discount    decimal(15, 2) NOT NULL,
       l_tax         decimal(15, 2) NOT NULL,
       l_returnflag  VARCHAR(1) NOT NULL,
       l_linestatus  VARCHAR(1) NOT NULL,
       l_commitdate  DATE NOT NULL,
       l_receiptdate DATE NOT NULL,
       l_shipinstruct VARCHAR(25) NOT NULL,
       l_shipmode     VARCHAR(10) NOT NULL,
       l_comment      VARCHAR(44) NOT NULL
   )ENGINE=OLAP
   DUPLICATE KEY(`l_shipdate`, `l_orderkey`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`l_orderkey`) BUCKETS 96
   PROPERTIES (
       "replication_num" = "1",
       "in_memory" = "false",
       "storage_format" = "DEFAULT",
       "colocate_with" = "tpch2"
   );
   # nation という名前のテーブルを作成します。
   drop table if exists nation;
   CREATE TABLE `nation` (
   `n_nationkey` int(11) NOT NULL,
   `n_name`      varchar(25) NOT NULL,
   `n_regionkey` int(11) NOT NULL,
   `n_comment`   varchar(152) NULL
   ) ENGINE=OLAP
   DUPLICATE KEY(`N_NATIONKEY`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`N_NATIONKEY`) BUCKETS 1
   PROPERTIES (
       "replication_num" = "3",
       "in_memory" = "false",
       "storage_format" = "DEFAULT"
   );
   # orders という名前のテーブルを作成します。
   drop table if exists orders;
   CREATE TABLE orders  (
       o_orderkey       int NOT NULL,
       o_orderdate      DATE NOT NULL,
       o_custkey        int NOT NULL,
       o_orderstatus    VARCHAR(1) NOT NULL,
       o_totalprice     decimal(15, 2) NOT NULL,
       o_orderpriority  VARCHAR(15) NOT NULL,
       o_clerk          VARCHAR(15) NOT NULL,
       o_shippriority   int NOT NULL,
       o_comment        VARCHAR(79) NOT NULL
   )ENGINE=OLAP
   DUPLICATE KEY(`o_orderkey`, `o_orderdate`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`o_orderkey`) BUCKETS 96
   PROPERTIES (
       "replication_num" = "1",
       "in_memory" = "false",
       "storage_format" = "DEFAULT",
       "colocate_with" = "tpch2"
   );
   # part という名前のテーブルを作成します。
   drop table if exists part;
   CREATE TABLE part (
       p_partkey          int NOT NULL,
       p_name        VARCHAR(55) NOT NULL,
       p_mfgr        VARCHAR(25) NOT NULL,
       p_brand       VARCHAR(10) NOT NULL,
       p_type        VARCHAR(25) NOT NULL,
       p_size        int NOT NULL,
       p_container   VARCHAR(10) NOT NULL,
       p_retailprice decimal(15, 2) NOT NULL,
       p_comment     VARCHAR(23) NOT NULL
   )ENGINE=OLAP
   DUPLICATE KEY(`p_partkey`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`p_partkey`) BUCKETS 24
   PROPERTIES (
       "replication_num" = "1",
       "in_memory" = "false",
       "storage_format" = "DEFAULT",
       "colocate_with" = "tpch2p"
   );
   # partsupp という名前のテーブルを作成します。
   drop table if exists partsupp;
   CREATE TABLE partsupp (
       ps_partkey          int NOT NULL,
       ps_suppkey     int NOT NULL,
       ps_availqty    int NOT NULL,
       ps_supplycost  decimal(15, 2)  NOT NULL,
       ps_comment     VARCHAR(199) NOT NULL
   )ENGINE=OLAP
   DUPLICATE KEY(`ps_partkey`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`ps_partkey`) BUCKETS 24
   PROPERTIES (
       "replication_num" = "1",
       "in_memory" = "false",
       "storage_format" = "DEFAULT",
       "colocate_with" = "tpch2p"
   );
   # region という名前のテーブルを作成します。
   drop table if exists region;
   CREATE TABLE region  (
       r_regionkey      int NOT NULL,
       r_name       VARCHAR(25) NOT NULL,
       r_comment    VARCHAR(152)
   )ENGINE=OLAP
   DUPLICATE KEY(`r_regionkey`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`r_regionkey`) BUCKETS 1
   PROPERTIES (
       "replication_num" = "3",
       "in_memory" = "false",
       "storage_format" = "DEFAULT"
   );
   # supplier という名前のテーブルを作成します。
   drop table if exists supplier;
   CREATE TABLE supplier (
       s_suppkey       int NOT NULL,
       s_name        VARCHAR(25) NOT NULL,
       s_address     VARCHAR(40) NOT NULL,
       s_nationkey   int NOT NULL,
       s_phone       VARCHAR(15) NOT NULL,
       s_acctbal     decimal(15, 2) NOT NULL,
       s_comment     VARCHAR(101) NOT NULL
   )ENGINE=OLAP
   DUPLICATE KEY(`s_suppkey`)
   COMMENT "OLAP"
   DISTRIBUTED BY HASH(`s_suppkey`) BUCKETS 12
   PROPERTIES (
       "replication_num" = "1",
       "in_memory" = "false",
       "storage_format" = "DEFAULT"
   );
   drop view if exists revenue0;
   create view revenue0 (supplier_no, total_revenue) as
   select
       l_suppkey,
       sum(l_extendedprice * (1 - l_discount))
   from
       lineitem
   where
       l_shipdate >= date '1996-01-01'
       and l_shipdate < date '1996-01-01' + interval '3' month
   group by
       l_suppkey;

4.1.3 データのインポート

./bin/stream_load.sh data_100

4.1.4 統計情報の収集 (オプション)

このステップはオプションです。より良いテスト結果を生成するために、完全な統計情報を収集することをお勧めします。StarRocks クラスタに接続した後、次のコマンドを実行します。

ANALYZE FULL TABLE customer;
ANALYZE FULL TABLE lineitem;
ANALYZE FULL TABLE nation;
ANALYZE FULL TABLE orders;
ANALYZE FULL TABLE part;
ANALYZE FULL TABLE partsupp;
ANALYZE FULL TABLE region;
ANALYZE FULL TABLE supplier;

4.1.5 データのクエリ

./bin/benchmark.sh -p -d tpch

4.2 StarRocks Hive 外部テーブル

4.2.1 テーブルスキーマの作成

Hive でテーブルスキーマを作成します。ストレージ形式は ORC です。

create database tpch_hive_orc;
use tpch_hive_orc;
-- customer という名前のテーブルを作成します。
CREATE TABLE `customer`(
  `c_custkey` int,
  `c_name` varchar(25),
  `c_address` varchar(40),
  `c_nationkey` int,
  `c_phone` varchar(15),
  `c_acctbal` decimal(15,2),
  `c_mktsegment` varchar(10),
  `c_comment` varchar(117))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/customer';
-- lineitem という名前のテーブルを作成します。
  CREATE TABLE `lineitem`(
  `l_orderkey` bigint,
  `l_partkey` int,
  `l_suppkey` int,
  `l_linenumber` int,
  `l_quantity` decimal(15,2),
  `l_extendedprice` decimal(15,2),
  `l_discount` decimal(15,2),
  `l_tax` decimal(15,2),
  `l_returnflag` varchar(1),
  `l_linestatus` varchar(1),
  `l_shipdate` date,
  `l_commitdate` date,
  `l_receiptdate` date,
  `l_shipinstruct` varchar(25),
  `l_shipmode` varchar(10),
  `l_comment` varchar(44))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/lineitem';
-- nation という名前のテーブルを作成します。
CREATE TABLE `nation`(
  `n_nationkey` int,
  `n_name` varchar(25),
  `n_regionkey` int,
  `n_comment` varchar(152))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/nation';
-- orders という名前のテーブルを作成します。
CREATE TABLE `orders`(
  `o_orderkey` bigint,
  `o_custkey` int,
  `o_orderstatus` varchar(1),
  `o_totalprice` decimal(15,2),
  `o_orderdate` date,
  `o_orderpriority` varchar(15),
  `o_clerk` varchar(15),
  `o_shippriority` int,
  `o_comment` varchar(79))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/orders';
-- part という名前のテーブルを作成します。
CREATE TABLE `part`(
  `p_partkey` int,
  `p_name` varchar(55),
  `p_mfgr` varchar(25),
  `p_brand` varchar(10),
  `p_type` varchar(25),
  `p_size` int,
  `p_container` varchar(10),
  `p_retailprice` decimal(15,2),
  `p_comment` varchar(23))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/part';
-- partsupp という名前のテーブルを作成します。
CREATE TABLE `partsupp`(
  `ps_partkey` int,
  `ps_suppkey` int,
  `ps_availqty` int,
  `ps_supplycost` decimal(15,2),
  `ps_comment` varchar(199))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/partsupp';
-- region という名前のテーブルを作成します。
CREATE TABLE `region`(
  `r_regionkey` int,
  `r_name` varchar(25),
  `r_comment` varchar(152))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/region';
-- supplier という名前のテーブルを作成します。
CREATE TABLE `supplier`(
  `s_suppkey` int,
  `s_name` varchar(25),
  `s_address` varchar(40),
  `s_nationkey` int,
  `s_phone` varchar(15),
  `s_acctbal` decimal(15,2),
  `s_comment` varchar(101))
ROW FORMAT SERDE
  'org.apache.hadoop.hive.ql.io.orc.OrcSerde'
WITH SERDEPROPERTIES (
  'field.delim'='|',
  'serialization.format'='|')
STORED AS INPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcInputFormat'
OUTPUTFORMAT
  'org.apache.hadoop.hive.ql.io.orc.OrcOutputFormat'
LOCATION
  'hdfs://emr-header-1.cluster-49146:9000/user/hive/warehouse/tpch_hive_orc.db/supplier';

StarRocks で外部テーブルを作成します。

create database if not exists tpch_sr;
use tpch_sr;
CREATE EXTERNAL RESOURCE "hive_test" PROPERTIES (
  "type" = "hive",
  "hive.metastore.uris" = "thrift://xx.xx.xx.xx:9083"
);
CREATE EXTERNAL TABLE IF NOT EXISTS nation (
    n_nationkey int,
    n_name VARCHAR(25),
    n_regionkey int,
    n_comment varchar(152))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "nation",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS customer (
    c_custkey     INTEGER,
    c_name        VARCHAR(25),
    c_address     VARCHAR(40),
    c_nationkey   INTEGER,
    c_phone       VARCHAR(15),
    c_acctbal     DECIMAL(15,2),
    c_mktsegment  VARCHAR(10),
    c_comment     VARCHAR(117))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "customer",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS lineitem (
    l_orderkey    BIGINT,
    l_partkey     INTEGER,
    l_suppkey     INTEGER,
    l_linenumber  INTEGER,
    l_quantity    DECIMAL(15,2),
    l_extendedprice  DECIMAL(15,2),
    l_discount    DECIMAL(15,2),
    l_tax         DECIMAL(15,2),
    l_returnflag  VARCHAR(1),
    l_linestatus  VARCHAR(1),
    l_shipdate    DATE,
    l_commitdate  DATE,
    l_receiptdate DATE,
    l_shipinstruct VARCHAR(25),
    l_shipmode     VARCHAR(10),
    l_comment      VARCHAR(44))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "lineitem",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS orders  (
    o_orderkey       BIGINT,
    o_custkey        INTEGER,
    o_orderstatus    VARCHAR(1),
    o_totalprice     DECIMAL(15,2),
    o_orderdate      DATE,
    o_orderpriority  VARCHAR(15),
    o_clerk          VARCHAR(15),
    o_shippriority   INTEGER,
    o_comment        VARCHAR(79))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "orders",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS part  (
    p_partkey     INTEGER,
    p_name        VARCHAR(55),
    p_mfgr        VARCHAR(25),
    p_brand       VARCHAR(10),
    p_type        VARCHAR(25),
    p_size        INTEGER,
    p_container   VARCHAR(10),
    p_retailprice DECIMAL(15,2),
    p_comment     VARCHAR(23))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "part",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS partsupp (
    ps_partkey     INTEGER,
    ps_suppkey     INTEGER,
    ps_availqty    INTEGER,
    ps_supplycost  DECIMAL(15,2),
    ps_comment     VARCHAR(199))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "partsupp",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS region  (
    r_regionkey  INTEGER,
    r_name       VARCHAR(25),
    r_comment    VARCHAR(152))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "region",
    "database" = "tpch_hive_orc"
);
CREATE EXTERNAL TABLE IF NOT EXISTS supplier (
    s_suppkey     INTEGER,
    s_name        VARCHAR(25),
    s_address     VARCHAR(40),
    s_nationkey   INTEGER,
    s_phone       VARCHAR(15),
    s_acctbal     DECIMAL(15,2),
    s_comment     VARCHAR(101))
ENGINE=hive
properties (
    "resource" = "hive_test",
    "table" = "supplier",
    "database" = "tpch_hive_orc"
);
create view revenue0 (supplier_no, total_revenue) as
select
    l_suppkey,
    sum(l_extendedprice * (1 - l_discount))
from
    lineitem
where
    l_shipdate >= date '1996-01-01'
    and l_shipdate < date '1996-01-01' + interval '3' month
group by
    l_suppkey;

4.2.2 データのインポート

1. Hive で Hive 外部テーブルを作成します。テーブル形式は CSV です。CSV テストデータを HDFS 上のデータストレージディレクトリにアップロードします。この例では、Hive 外部テーブルの HDFS データストレージパスは /user/tmp/csv/ です。

   create database tpch_hive_csv;
   use tpch_hive_csv;

   -- customer という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `customer`(
   `c_custkey` int,
   `c_name` varchar(25),
   `c_address` varchar(40),
   `c_nationkey` int,
   `c_phone` varchar(15),
   `c_acctbal` double,
   `c_mktsegment` varchar(10),
   `c_comment` varchar(117))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/customer_csv';
   -- lineitem という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `lineitem`(
   `l_orderkey` int,
   `l_partkey` int,
   `l_suppkey` int,
   `l_linenumber` int,
   `l_quantity` double,
   `l_extendedprice` double,
   `l_discount` double,
   `l_tax` double,
   `l_returnflag` varchar(1),
   `l_linestatus` varchar(1),
   `l_shipdate` date,
   `l_commitdate` date,
   `l_receiptdate` date,
   `l_shipinstruct` varchar(25),
   `l_shipmode` varchar(10),
   `l_comment` varchar(44))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/lineitem_csv';
   -- nation という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `nation`(
   `n_nationkey` int,
   `n_name` varchar(25),
   `n_regionkey` int,
   `n_comment` varchar(152))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/nation_csv';
   -- orders という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `orders`(
   `o_orderkey` int,
   `o_custkey` int,
   `o_orderstatus` varchar(1),
   `o_totalprice` double,
   `o_orderdate` date,
   `o_orderpriority` varchar(15),
   `o_clerk` varchar(15),
   `o_shippriority` int,
   `o_comment` varchar(79))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/orders_csv';
   -- part という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `part`(
   `p_partkey` int,
   `p_name` varchar(55),
   `p_mfgr` varchar(25),
   `p_brand` varchar(10),
   `p_type` varchar(25),
   `p_size` int,
   `p_container` varchar(10),
   `p_retailprice` double,
   `p_comment` varchar(23))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/part_csv';
   -- partsupp という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `partsupp`(
   `ps_partkey` int,
   `ps_suppkey` int,
   `ps_availqty` int,
   `ps_supplycost` double,
   `ps_comment` varchar(199))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/partsupp_csv';
   -- region という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `region`(
   `r_regionkey` int,
   `r_name` varchar(25),
   `r_comment` varchar(152))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/region_csv';
   -- supplier という名前の外部テーブルを作成します。
   CREATE EXTERNAL TABLE `supplier`(
   `s_suppkey` int,
   `s_name` varchar(25),
   `s_address` varchar(40),
   `s_nationkey` int,
   `s_phone` varchar(15),
   `s_acctbal` double,
   `s_comment` varchar(101))
   ROW FORMAT SERDE
   'org.apache.hadoop.hive.serde2.lazy.LazySimpleSerDe'
   WITH SERDEPROPERTIES (
   'field.delim'='|',
   'serialization.format'='|')
   STORED AS INPUTFORMAT
   'org.apache.hadoop.mapred.TextInputFormat'
   OUTPUTFORMAT
   'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
   LOCATION
   'hdfs://emr-header-1.cluster-49146:9000/user/tmp/csv/supplier_csv';

2. 各 Hive 外部テーブルの CSV データを ORC 形式の Hive テーブルに転送します。これにより、StarRocks と Trino で ORC 形式の Hive 外部テーブルを作成し、後続のテストを行うことができます。

   use tpch_hive_csv;
   insert into tpch_hive_orc.customer  select * from customer;
   insert into tpch_hive_orc.lineitem  select * from lineitem;
   insert into tpch_hive_orc.nation  select * from nation;
   insert into tpch_hive_orc.orders  select * from orders;
   insert into tpch_hive_orc.part  select * from part;
   insert into tpch_hive_orc.partsupp  select * from partsupp;
   insert into tpch_hive_orc.region  select * from region;
   insert into tpch_hive_orc.supplier  select * from supplier;

4.2.3 データのクエリ

use tpch_sr;
-- 現在のセッションのシステム変数をクエリします。
show variables;
-- 並行性を 8 に設定します。
set parallel_fragment_exec_instance_num = 8;

--Q1
select
  l_returnflag,
  l_linestatus,
  sum(l_quantity) as sum_qty,
  sum(l_extendedprice) as sum_base_price,
  sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
  sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
  avg(l_quantity) as avg_qty,
  avg(l_extendedprice) as avg_price,
  avg(l_discount) as avg_disc,
  count(*) as count_order
from lineitem
where  l_shipdate <= date '1998-12-01'
group by  l_returnflag,  l_linestatus
order by  l_returnflag,  l_linestatus;

--Q2
select  s_acctbal, s_name,  n_name,  p_partkey,  p_mfgr,  s_address,  s_phone,  s_comment
from  part,  partsupp,  supplier,  nation,  region
where
  p_partkey = ps_partkey
  and s_suppkey = ps_suppkey
  and p_size = 15
  and p_type like '%BRASS'
  and s_nationkey = n_nationkey
  and n_regionkey = r_regionkey
  and r_name = 'EUROPE'
  and ps_supplycost = (
    select  min(ps_supplycost)
    from  partsupp,  supplier,  nation,  region
    where
      p_partkey = ps_partkey
      and s_suppkey = ps_suppkey
      and s_nationkey = n_nationkey
      and n_regionkey = r_regionkey
      and r_name = 'EUROPE'
  )
order by  s_acctbal desc, n_name,  s_name,  p_partkey;

--Q3
select
  l_orderkey, sum(l_extendedprice * (1 - l_discount)) as revenue, o_orderdate, o_shippriority
from
  customer, orders, lineitem
where
  c_mktsegment = 'BUILDING'
  and c_custkey = o_custkey
  and l_orderkey = o_orderkey
  and o_orderdate < date '1995-03-15'
  and l_shipdate > date '1995-03-15'
group by l_orderkey, o_orderdate, o_shippriority
order by revenue desc, o_orderdate;

--Q4
select  o_orderpriority,  count(*) as order_count
from  orders
where
  o_orderdate >= date '1993-07-01'
  and o_orderdate < date '1993-07-01' + interval '3' month
  and exists (
    select  * from  lineitem
    where  l_orderkey = o_orderkey and l_commitdate < l_receiptdate
  )
group by o_orderpriority
order by o_orderpriority;

--Q5
select n_name, sum(l_extendedprice * (1 - l_discount)) as revenue
from customer, orders, lineitem, supplier, nation, region
where
  c_custkey = o_custkey
  and l_orderkey = o_orderkey
  and l_suppkey = s_suppkey
  and c_nationkey = s_nationkey
  and s_nationkey = n_nationkey
  and n_regionkey = r_regionkey
  and r_name = 'ASIA'
  and o_orderdate >= date '1994-01-01'
  and o_orderdate < date '1994-01-01' + interval '1' year
group by n_name
order by revenue desc;

--Q6
select
  sum(l_extendedprice * l_discount) as revenue
from
  lineitem
where
  l_shipdate >= date '1994-01-01'
  and l_shipdate < date '1994-01-01' + interval '1' year
  and l_discount between .06 - 0.01 and .06 + 0.01
  and l_quantity < 24;

--Q7
select supp_nation, cust_nation, l_year, sum(volume) as revenue
from (
    select
      n1.n_name as supp_nation,
      n2.n_name as cust_nation,
      extract(year from l_shipdate) as l_year,
      l_extendedprice * (1 - l_discount) as volume
    from supplier, lineitem, orders, customer, nation n1, nation n2
    where
      s_suppkey = l_suppkey
      and o_orderkey = l_orderkey
      and c_custkey = o_custkey
      and s_nationkey = n1.n_nationkey
      and c_nationkey = n2.n_nationkey
      and (
        (n1.n_name = 'FRANCE' and n2.n_name = 'GERMANY')
        or (n1.n_name = 'GERMANY' and n2.n_name = 'FRANCE')
      )
      and l_shipdate between date '1995-01-01' and date '1996-12-31'
  ) as shipping
group by supp_nation, cust_nation, l_year
order by supp_nation, cust_nation, l_year;

--Q8
select
  o_year, sum(case when nation = 'BRAZIL' then volume else 0 end) / sum(volume) as mkt_share
from
  (
    select
      extract(year from o_orderdate) as o_year,
      l_extendedprice * (1 - l_discount) as volume,
      n2.n_name as nation
    from part, supplier, lineitem, orders, customer, nation n1, nation n2, region
    where
      p_partkey = l_partkey
      and s_suppkey = l_suppkey
      and l_orderkey = o_orderkey
      and o_custkey = c_custkey
      and c_nationkey = n1.n_nationkey
      and n1.n_regionkey = r_regionkey
      and r_name = 'AMERICA'
      and s_nationkey = n2.n_nationkey
      and o_orderdate between date '1995-01-01' and date '1996-12-31'
      and p_type = 'ECONOMY ANODIZED STEEL'
  ) as all_nations
group by o_year
order by o_year;

--Q9
select nation, o_year, sum(amount) as sum_profit
from
  (
    select
      n_name as nation,
      extract(year from o_orderdate) as o_year,
      l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
    from part, supplier, lineitem, partsupp, orders, nation
    where
      s_suppkey = l_suppkey
      and ps_suppkey = l_suppkey
      and ps_partkey = l_partkey
      and p_partkey = l_partkey
      and o_orderkey = l_orderkey
      and s_nationkey = n_nationkey
      and p_name like '%green%'
  ) as profit
group by nation, o_year
order by nation, o_year desc;

--Q10
select c_custkey, c_name, sum(l_extendedprice * (1 - l_discount)) as revenue, c_acctbal, n_name, c_address, c_phone, c_comment
    from customer, orders, lineitem, nation
    where
      c_custkey = o_custkey
      and l_orderkey = o_orderkey
      and o_orderdate >= date '1993-10-01'
      and o_orderdate < date '1993-12-01'
      and l_returnflag = 'R'
      and c_nationkey = n_nationkey
    group by c_custkey, c_name, c_acctbal, c_phone, n_name, c_address, c_comment
    order by revenue desc;

--Q11
select ps_partkey, sum(ps_supplycost * ps_availqty) as value
from partsupp, supplier, nation
where
  ps_suppkey = s_suppkey
  and s_nationkey = n_nationkey
  and n_name = 'GERMANY'
group by ps_partkey having
    sum(ps_supplycost * ps_availqty) > (
      select sum(ps_supplycost * ps_availqty) * 0.0001000000
      from partsupp, supplier, nation
      where
        ps_suppkey = s_suppkey
        and s_nationkey = n_nationkey
        and n_name = 'GERMANY'
    )
order by value desc;

--Q12
select
  l_shipmode,
  sum(case when o_orderpriority = '1-URGENT' or o_orderpriority = '2-HIGH' then 1 else 0 end) as high_line_count,
  sum(case when o_orderpriority <> '1-URGENT' and o_orderpriority <> '2-HIGH' then 1 else 0 end) as low_line_count
from orders, lineitem
where
  o_orderkey = l_orderkey
  and l_shipmode in ('MAIL', 'SHIP')
  and l_commitdate < l_receiptdate
  and l_shipdate < l_commitdate
  and l_receiptdate >= date '1994-01-01'
  and l_receiptdate < date '1994-01-01' + interval '1' year
group by l_shipmode
order by l_shipmode;

--Q13
select  c_count,  count(*) as custdist
from (select c_custkey,count(o_orderkey) as c_count
    from customer left outer join orders on c_custkey = o_custkey and o_comment not like '%special%requests%'
    group by  c_custkey
) as c_orders
group by  c_count
order by custdist desc, c_count desc;

--Q14
select
  100.00 * sum(case when p_type like 'PROMO%' then l_extendedprice * (1 - l_discount) else 0 end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
from lineitem, part
where
  l_partkey = p_partkey
  and l_shipdate >= date '1995-09-01'
  and l_shipdate < date '1995-09-01' + interval '1' month;

--Q15
select s_suppkey, s_name, s_address, s_phone, total_revenue
from supplier, revenue0
where
  s_suppkey = supplier_no
  and total_revenue = (
    select max(total_revenue) from revenue0
  )
order by s_suppkey;

--Q16
select p_brand, p_type, p_size, count(distinct ps_suppkey) as supplier_cnt
from partsupp, part
where
  p_partkey = ps_partkey
  and p_brand <> 'Brand#45'
  and p_type not like 'MEDIUM POLISHED%'
  and p_size in (49, 14, 23, 45, 19, 3, 36, 9)
  and ps_suppkey not in (
    select s_suppkey from supplier where s_comment like '%Customer%Complaints%'
  )
group by p_brand, p_type, p_size
order by supplier_cnt desc, p_brand, p_type, p_size;

--Q17
select sum(l_extendedprice) / 7.0 as avg_yearly
from lineitem, part
where
  p_partkey = l_partkey
  and p_brand = 'Brand#23'
  and p_container = 'MED BOX'
  and l_quantity < (
    select 0.2 * avg(l_quantity) from lineitem where l_partkey = p_partkey
  );

--Q18
select c_name, c_custkey, o_orderkey, o_orderdate, o_totalprice, sum(l_quantity)
from customer, orders, lineitem
where
  o_orderkey in (
    select l_orderkey from lineitem
    group by l_orderkey having
        sum(l_quantity) > 300
  )
  and c_custkey = o_custkey
  and o_orderkey = l_orderkey
group by c_name, c_custkey, o_orderkey, o_orderdate, o_totalprice
order by o_totalprice desc, o_orderdate;

--Q19
select sum(l_extendedprice* (1 - l_discount)) as revenue
from lineitem, part
where
  (
    p_partkey = l_partkey
    and p_brand = 'Brand#12'
    and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
    and l_quantity >= 1 and l_quantity <= 1 + 10
    and p_size between 1 and 5
    and l_shipmode in ('AIR', 'AIR REG')
    and l_shipinstruct = 'DELIVER IN PERSON'
  )
  or
  (
    p_partkey = l_partkey
    and p_brand = 'Brand#23'
    and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
    and l_quantity >= 10 and l_quantity <= 10 + 10
    and p_size between 1 and 10
    and l_shipmode in ('AIR', 'AIR REG')
    and l_shipinstruct = 'DELIVER IN PERSON'
  )
  or
  (
    p_partkey = l_partkey
    and p_brand = 'Brand#34'
    and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
    and l_quantity >= 20 and l_quantity <= 20 + 10
    and p_size between 1 and 15
    and l_shipmode in ('AIR', 'AIR REG')
    and l_shipinstruct = 'DELIVER IN PERSON'
  );

--Q20
select s_name, s_address
from supplier, nation
where
  s_suppkey in (
    select ps_suppkey
    from partsupp
    where
      ps_partkey in (
        select p_partkey from part
        where p_name like 'forest%'
      )
      and ps_availqty > (
        select 0.5 * sum(l_quantity)
        from lineitem
        where
          l_partkey = ps_partkey
          and l_suppkey = ps_suppkey
          and l_shipdate >= date '1994-01-01'
          and l_shipdate < date '1994-01-01' + interval '1' year
      )
  )
  and s_nationkey = n_nationkey
  and n_name = 'CANADA'
order by s_name;

--Q21
select s_name, count(*) as numwait
from  supplier,  lineitem l1,  orders,  nation
where
  s_suppkey = l1.l_suppkey
  and o_orderkey = l1.l_orderkey
  and o_orderstatus = 'F'
  and l1.l_receiptdate > l1.l_commitdate
  and exists (
    select      *     from    lineitem l2
    where
      l2.l_orderkey = l1.l_orderkey
      and l2.l_suppkey <> l1.l_suppkey
  )
  and not exists (
    select      *       from    lineitem l3
    where
      l3.l_orderkey = l1.l_orderkey
      and l3.l_suppkey <> l1.l_suppkey
      and l3.l_receiptdate > l3.l_commitdate
  )
  and s_nationkey = n_nationkey
  and n_name = 'SAUDI ARABIA'
group by s_name
order by  numwait desc, s_name;

--Q22
select
  cntrycode,
  count(*) as numcust,
  sum(c_acctbal) as totacctbal
from
  (
    select
      substr(c_phone, 1, 2) as cntrycode,
      c_acctbal
    from
      customer
    where
      substr(c_phone, 1, 2) in
        ('13', '31', '23', '29', '30', '18', '17')
      and c_acctbal > (
        select
          avg(c_acctbal)
        from
          customer
        where
          c_acctbal > 0.00
          and substr(c_phone, 1, 2) in
            ('13', '31', '23', '29', '30', '18', '17')
      )
      and not exists (
        select
          *
        from
          orders
        where
          o_custkey = c_custkey
      )
  ) as custsale
group by
  cntrycode
order by
  cntrycode;
