[Preview] Hybrid row-column storage

As an OLAP database, StarRocks originally stores data in the columnar storage, which can enhance the performance of complex queries, such as aggregate queries. Since v3.2.3, StarRocks also supports storing data in the hybrid row-column storage where data is stored in both row-by-row and column-by-column fashions. This hybrid row-column storage is well suited for various scenario such as primary key-based high-concurrency, low-latency point queries and partial column updates, while delivering efficient analytical capabilities comparable to columnar storage. Additionally, hybrid row-column storage supports prepared statements, which enhances query performance and security.

Comparisons between columnar storage and hybrid row-column storage

Hybrid row-column storage

Storage method: Data is stored in both row-by-row and column-by-column fashions. Simply put, a table that uses hybrid row-column storage contains an additional, hidden binary-type column __row. When data is written to the table, all values from the value columns of each involved row are encoded and written to the __row column (as shown below). As the data is stored in both row-by-row and column-by-column fashions, additional storage costs are incurred.
Scenarios: supports the user scenarios of both row-by-row and column-by-column storage, but incurs additional storage costs.
- User scenarios of row-by-row storage:
- User scenarios of column-by-column storage: Complex data analysis.

Column-oriented

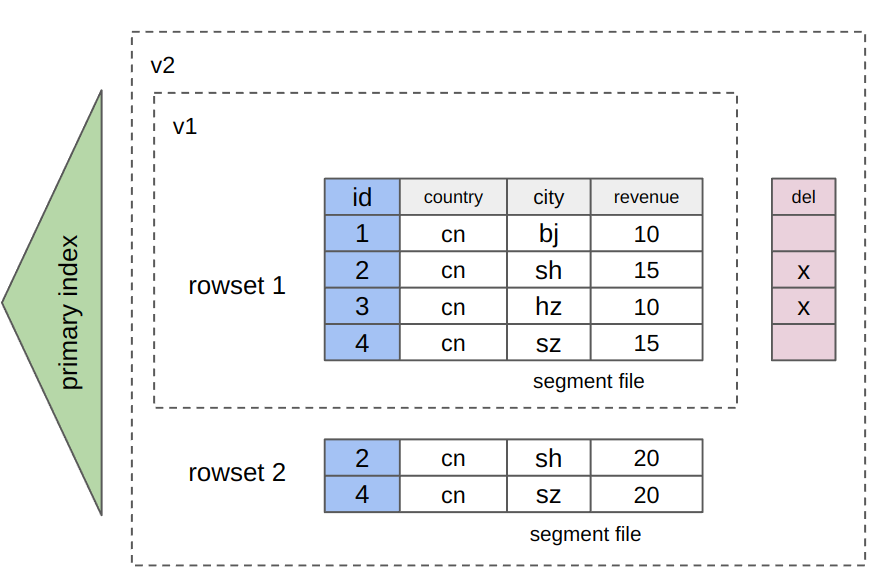

Storage method: Data is stored in a column-by-column fashion.
Scenarios: Complex data analysis.
- Complex queries and analyses on massive datasets, such as aggregate analysis and multi-table join queries.
- Tables consist of many fields (such as wide tables), but queries against these tables involve only a few columns.

Basic usages

Create a table that uses hybrid row-column storage

Enable the FE configuration item enable_experimental_rowstore.

ADMIN SET FRONTEND CONFIG ("enable_experimental_rowstore" = "true");

Specify "STORE_TYPE" = "column_with_row" in the PROPERTIES at table creation.

note

The table must be a Primary Key table.
The length of the __row column cannot exceed 1 MB.
Since v3.2.4, StarRocks extends support to the following column types: BITMAP, HLL, JSON, ARRAY, MAP, and STRUCT.

CREATE TABLE users (
  id bigint not null,
  country string,
  city string,
  revenue bigint
)
PRIMARY KEY (id)
DISTRIBUTED by HASH (id)
PROPERTIES ("store_type" = "column_with_row");

Insert, delete, and update data

Similar to a table that uses columnar storage, you can insert, delete, and update data on a table that uses hybrid row-column storage by data loading and DML statements. This section demonstrates how to run DML statements on the above table with hybrid row-column storage.

Insert a data row.

INSERT INTO users (id, country, city, revenue)
VALUES
  (1, 'USA', 'New York', 5000),
  (2, 'UK', 'London', 4500),
  (3, 'France', 'Paris', 6000),
  (4, 'Germany', 'Berlin', 4000),
  (5, 'Japan', 'Tokyo', 7000),
  (6, 'Australia', 'Sydney', 7500);

Delete a data row.
```
DELETE FROM users WHERE id = 6;
```

Update a data row.

UPDATE users SET revenue = 6500 WHERE id = 4;

Query data

This section uses a point query as an example. Point queries take a short circuit, directly querying data in row storage, which can improve query performance.

The following example still uses the above table with hybrid row-column storage. After the table creation and data modification operations mentioned above, the table stores the data as follows:

MySQL [example_db]> SELECT * FROM users ORDER BY id;
+------+---------+----------+---------+
| id   | country | city     | revenue |
+------+---------+----------+---------+
|    1 | USA     | New York |    5000 |
|    2 | UK      | London   |    4500 |
|    3 | France  | Paris    |    6000 |
|    4 | Germany | Berlin   |    6500 |
|    5 | Japan   | Tokyo    |    7000 |
+------+---------+----------+---------+
5 rows in set (0.03 sec)

Make sure that the system enables short circuiting for queries. Once short circuiting for queries is enabled, queries that meet certain criteria (to evaluate whether the query is a point query) take a short circuit to scan data in row-oriented storage.
```
SHOW VARIABLES LIKE '%enable_short_circuit%';
```
If the short circuiting for queries is not enabled, run the SET enable_short_circuit = true; command to set the variable enable_short_circuit to true.
Query data. If the query meets the criteria that conditional columns in the WHERE clause include all primary key columns, and the operators in the WHERE clause are = or IN, the query takes the shortcut.

note
The conditional columns in the WHERE clause can include additional columns beyond all primary key columns.
```
SELECT * FROM users WHERE id=1;
```

Check the query plan to verify whether the query can use the short circuit. If the query plan includes Short Circuit Scan: true, the query can take the short circuit.

MySQL [example_db]> EXPLAIN SELECT * FROM users WHERE id=1;
+---------------------------------------------------------+
| Explain String                                          |
+---------------------------------------------------------+
| PLAN FRAGMENT 0                                         |
|  OUTPUT EXPRS:1: id | 2: country | 3: city | 4: revenue |
|   PARTITION: RANDOM                                     |
|                                                         |
|   RESULT SINK                                           |
|                                                         |
|   0:OlapScanNode                                        |
|      TABLE: users                                       |
|      PREAGGREGATION: OFF. Reason: null                  |
|      PREDICATES: 1: id = 1                              |
|      partitions=1/1                                     |
|      rollup: users                                      |
|      tabletRatio=1/6                                    |
|      tabletList=10184                                   |
|      cardinality=-1                                     |
|      avgRowSize=0.0                                     |
|      Short Circuit Scan: true                           | -- The query can use the shortcut.
+---------------------------------------------------------+
17 rows in set (0.00 sec)

Use prepared statements

You can use the prepared statements to query data in the tables with hybrid row-column storage.

-- Prepare the statements for execution.
PREPARE select_all_stmt FROM 'SELECT * FROM users';
PREPARE select_by_id_stmt FROM 'SELECT * FROM users WHERE id = ?';

-- Declare variables in the statements.
SET @id1 = 1, @id2 = 2;

-- Use the declared variables to execute the statements.
-- Query data with ID 1 or 2 separately.
EXECUTE select_by_id_stmt USING @id1;
EXECUTE select_by_id_stmt USING @id2;

Limits

Since v3.2.4, the table with hybrid row-column storage can be altered by using ALTER TABLE.
The short circuiting for queries is currently only suitable for queries that happen after scheduled batch data loading. Because mutual exclusion of indexes may be incurred when the short circuiting for queries happens at the apply stage of the data writing process, data writing may block short circuiting for queries, affecting the response time of point queries during data writing.
Hybrid row-column storage may significantly increase storage consumption. This is because data is stored in both row and column formats, and the data compression ratio of row storage may not be as high as that of column storage.
Hybrid row-column storage can increase the time and resource consumption during data loading.
The tables with hybrid row-column storage can be a viable solution for online services, but the performance of this type of table may not compete with mature OLTP databases.
The tables with hybrid row-column storage do not support features that rely on columnar storage, such as partial updates in column mode.
The tables with hybrid row-column storage must be Primary Key tables.
